Solar Connector Installation Way

Date：2016-6-20

LEADER TECHNOLOGY (SHENZHEN)CO.,LIMITED



Solar Connector Installation Way

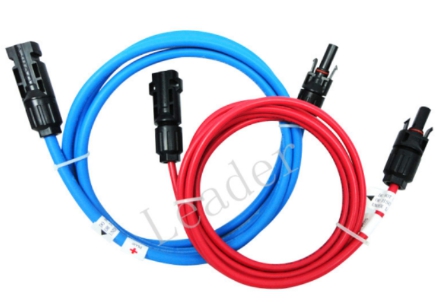

Product Name Solar DC connector
Number of crimps 1
Type Name Cable,12AWG/4.0mm2~10AWG/6.0mm2 Cable
Rated Voltage(s): 1000VDC
Rated Current: 15A~30A
Ambient temperature: – 40ºC to + 85ºC
Material of conductor: For Copper stranded wire only
Protection Degree: IP67



First step:

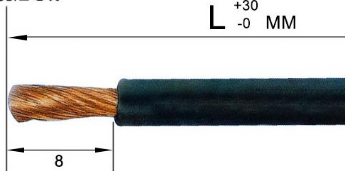

Take cable cover off:                                             Conductor length:8mm

Solar Connector Installation Way



The second step:

Put Terminal in the tooling                         Put cable conductor inset pin

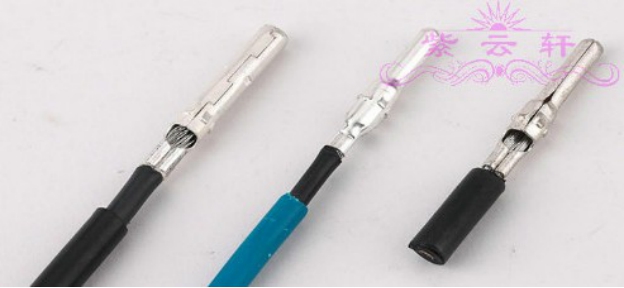

Crimping well the terminal

Solar Connector Installation Way

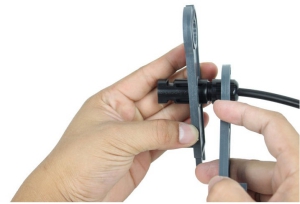

Then inset pin to the connector house                Using spanner to lock

Well down:

Solar Connector Installation Way



LEADER TECHNOLOGY (SHENZHEN)CO.,LIMITED



【Warning notice】



 Do not disconnect under load:
